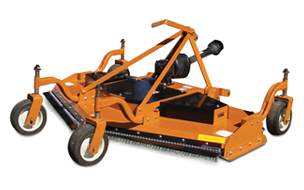

GROOMING MOWER

Grooming mower Our Mowers are best suits for golf courses, recreational areas, parks, sports field or any other place where you require something for a wide cut. We have designed our mowers to be operated at high speed even closer to the ground. We use quality spares for mower that doesn't trouble our clients for years and make mower to be able to perform better than its competitors and requires very low maintenance. When quality, durability and performance matter most, Windsor's mower is preferred over any other brand.


Benefits and Features:

  • Our mower requires comparatively low maintenance than its counterparts and it is designed in the way the user can make minor maintenance easily and for users ease greasable roller bearings are used.
  • Windsor Mower is capable of working close to the ground and can be operated upto 1 to 3 inches of the ground.
  • Windsor is offering different models of mower that may vary form 4 to 7 feet (width), we have suitable mowers for 20hp to 60hp tractors.
  • Our mower are assembled with heavy duty frames, these heavy frames supports the deck and reduces the stress form it.
  • After frame, we use heavy deck of 5mm for our mowers.
  • Mower is supported with four solid standard wheels, where rear wheels do not track follow the front wheels and placed narrower instead.
  • For Safety reasons we have chain shield in all models of mower.
  • We use heavy duty balanced steel pulley that is made of single piece of steel.
  • Mower works best at 540RPM of PTO, where speed of precise overlapping blade is about 1034RPM.
  • 2 Heavy duty reinforced belts are used with single unit gearbox.
Technical Specifications:
  WE/GM/4F WE/GM/5F WE/GM/6F WE/GM/7F
Mowing Width (m) 48 60 72 84
Overall Width (in) 52 64 76 88
Moving Height (in) 2 2 2 2
Number of Blades Dock 3 3 3 3
Hitch Cat-I/II Cat-I/II Cat-I/II Cat-I/II
Material Thickness (mm) 5 5 5 5
PTO Shaft Type Shear Bolt 20-30 Shear Bolt 30-40 Shear Bolt 40-50 Shear Bolt 50-60
Optimum PTO Speed (rpm) 540 540 540 540
Blade Speed (rpm) Wheel Type 1034 Solid 1034 Solid 1034 Solid 1034 Solid
Approximate Weight with PTO (kg) 240 280 360 400

* Above Stated data is for Reference Only. Company owns the right to change model specifications and features.
