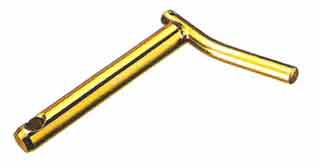

PIN WITH HANDLE

Technical Specifications:

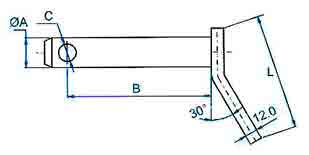

Part Number Ø A Dim. B Ø C Dim . L
mm inch. mm inch. mm inch. mm inch.
WPWH 001 19 mm 3/4" 123 mm 4"13/16 12 mm 1/2" 115 mm 4" 1/2
WPWH 002 22 mm 7/8" 123 mm 4"13/16 12 mm 1/2" 115 mm 4" 1/2
WPWH 003 25 mm 1" 123 mm 4"13/16 12 mm 1/2" 115 mm 4" 1/2
WPWH 004 28 mm 1"1/8" 123 mm 4"13/16 12 mm 1/2" 115 mm 4" 1/2
