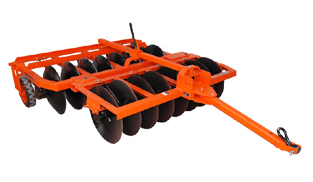

TRAILED OFFSET DISC HARROW ( COMPACT MODEL)

Trailed Offset Disc Harrow (Compact) Trailed offset disc harrow is most popular type of disk harrow being used for soil preparation. It is primary farm tool to be used in a raw field for land preparation, weed removal and to air the soil. Hardened disc with wide angle opened harrow never let any root uncut and bury them under overturned top layer of soil. Not only root but unwanted grass and other organic matter can be buried and mixed with the soil. Our trailed disc harrows are designed to be used either trailed or mounting harrow. Heavy frame let it work deep to break the clods in the field and mounting point make It easy to be transported.

Benefits and Features:

  • Mounting and trailing option available as per tractor capacity.
  • Heavy duty box frame make harrow more sturdy and rigid.
  • Multiple disc options to choose between boron steel disc and carbon steel disc.
  • Disc blade size may be chosen form 12 inches to 30 inches. And thickness varies form 2mm to 10mm
  • Angle can be adjusted easily.
  • Attaching to tractor and detaching is very simple. And can be transported easily.
  • We use bearing of top brands for hub.
  • Disc harrow is available with front row of notched (scallop) discs and second row of plain discs.
Technical Specifications:
8 X 8 16 9 X 9 18 10 X 10 20 11 X 11 22 12 X 12 24
Dbetween Disc (mm) 225 225   225 255
Type od Discs Notched in Front and Plain in Rear Notched in Front and Plain in Rear Notched in Front and Plain in Rear Notched in Front and Plain in Rear Notched in Front and Plain in Rear
Gangbolt Height central square solid bar with split gangs 1170mm with 560 mm Disc 1220mm with 610 mm discs central square solid bar with split gangs 1170mm with 560 mm Disc 1220mm with 610 mm discs central square solid bar with split gangs 1170mm with 560 mm Disc 1220mm with 610 mm discs central square solid bar with split gangs 1170mm with 560 mm Disc 1220mm with 610 mm discs central square solid bar with split gangs 1170mm with 560 mm Disc 1220mm with 610 mm discs
Mounting CAT-I/II (Optional) CAT-I/II (Optional) CAT-I/II (Optional) CAT-I/II (Optional) CAT-I/II (Optional)
Bearing Hubs Width Width of cut (MM) 61818-1843 82046-2071 82275-2300 82504-2530 82732-2758
Frame Heavy duty box frame Heavy duty box frame Heavy duty box frame Heavy duty box frame Heavy duty box frame
Power Required (HP) 45-50 50-55 55-65 65-75 75-85
Disc Diameter (mm) 560/610(Optional) 560/610(Optional) 560/610(Optional) 560/610(Optional) 560/610(Optional)
* Above Stated data is for Reference Only. Company owns the right to change model specifications and features.
